HD45

Golden Line

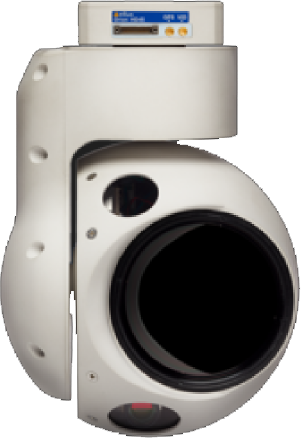

The HD45 combines the lightweight and robust design of the HD40 with the imaging capabilities of the HD50.

HD80 image 3

Features:

Golden Line

Machined Magnesium Housing – robust and environmentally sealed
Onboard GPS/INS – accurate gimbal and target location
MISB Compliant Video – h.264 video and KLV metadata
Onboard Video Processing – electronic image stabilization and scene tracking
Video and Control Over Ethernet – single 10/100 connection
Direct Drive Motors – best in class stability
Non-ITAR – simple export options
Precision Targeting Options – upgraded IMU for best in class geolocation
ITAR Required

Configurations

Golden Line

HD45-LV
The HD45-LV is an EO/IR configuration with a 30x optical zoom visible camera and a fixed focal length uncooled LWIR camera.
Weight: 1200g

HD45-LV-CZ
The HD45-LV-CZ is an EO/IR configuration with a 3.5x optical zoom visible camera and a 5x optical zoom uncooled LWIR camera. Weight: 1200g

Downloads

Golden Line

Accessories

Golden Line
HD25 Rectangle 18

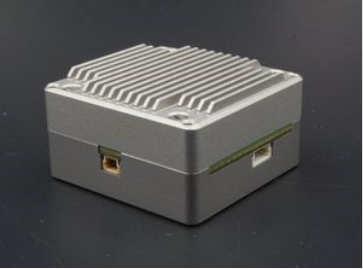

EXTERNAL REGULATOR

The HD45 requires regulated 24V for operation. We offer two variations of power regulation optimized for 10V to 21V in, or 17V to 34V in, both providing 24V out.

HD25

DEVELOPMENT KIT

The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.
