HD25

Golden Line

Fully redesigned in 2019, the HD25 is one of the smallest gimbals available without compromising on capability,offering advanced features such as geopointing and h.264 video encoding.

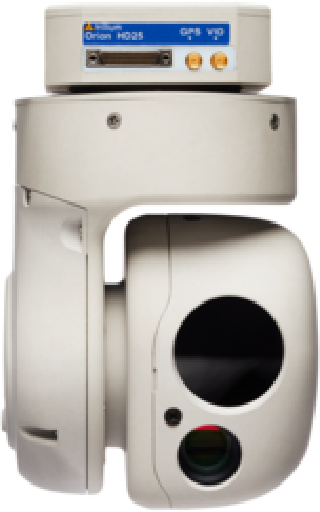

HD25 Rectangle-7

Features:

Golden Line

Machined Magnesium Housing – robust and environmentally sealed
Onboard GPS/INS – accurate gimbal and target location
MISB Compliant Video – h.264 video and KLV metadata
Onboard Video Processing – electronic image stabilization and scene tracking
Video and Control Over Ethernet – single 10/100 connection
Direct Drive Motors – best in class stability
Non-ITAR – simple export options
ITAR Required

Configurations

Golden Line

HD25-XV
The HD25-XV is an EO only configuration with a 3.5x optical zoom visible camera.
Weight: 340g

HD25-LV
The HD25-LV is an EO/IR configuration witha 3.5x optical zoom visible camera and a fixed focal length uncooled LWIR camera.
Weight: 340g

Downloads

Golden Line

Accessories

Golden Line
HD25 Rectangle 18

EXTERNAL REGULATOR

The HD25 requires regulated 24V for operation. We offer two variations of power regulation optimized for 10V to 21V in, or 17V to 34V in, both providing 24V out.

HD25

DEVELOPMENT KIT

The development kit contains everything you need to work with the gimbal on a bench including, an interface cable, a desktop power supply, and a GPS antenna. A development kit is recommended for all new purchases.

HD25

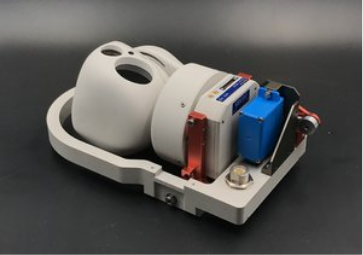

HD25 RETRACT

A retract is often used to protect the HD25 during landing. The retract is controlled through SkyLink and powered by the same 24V rail as the gimbal.
